A+Energy ratingHeta · Wood Burning Stoves

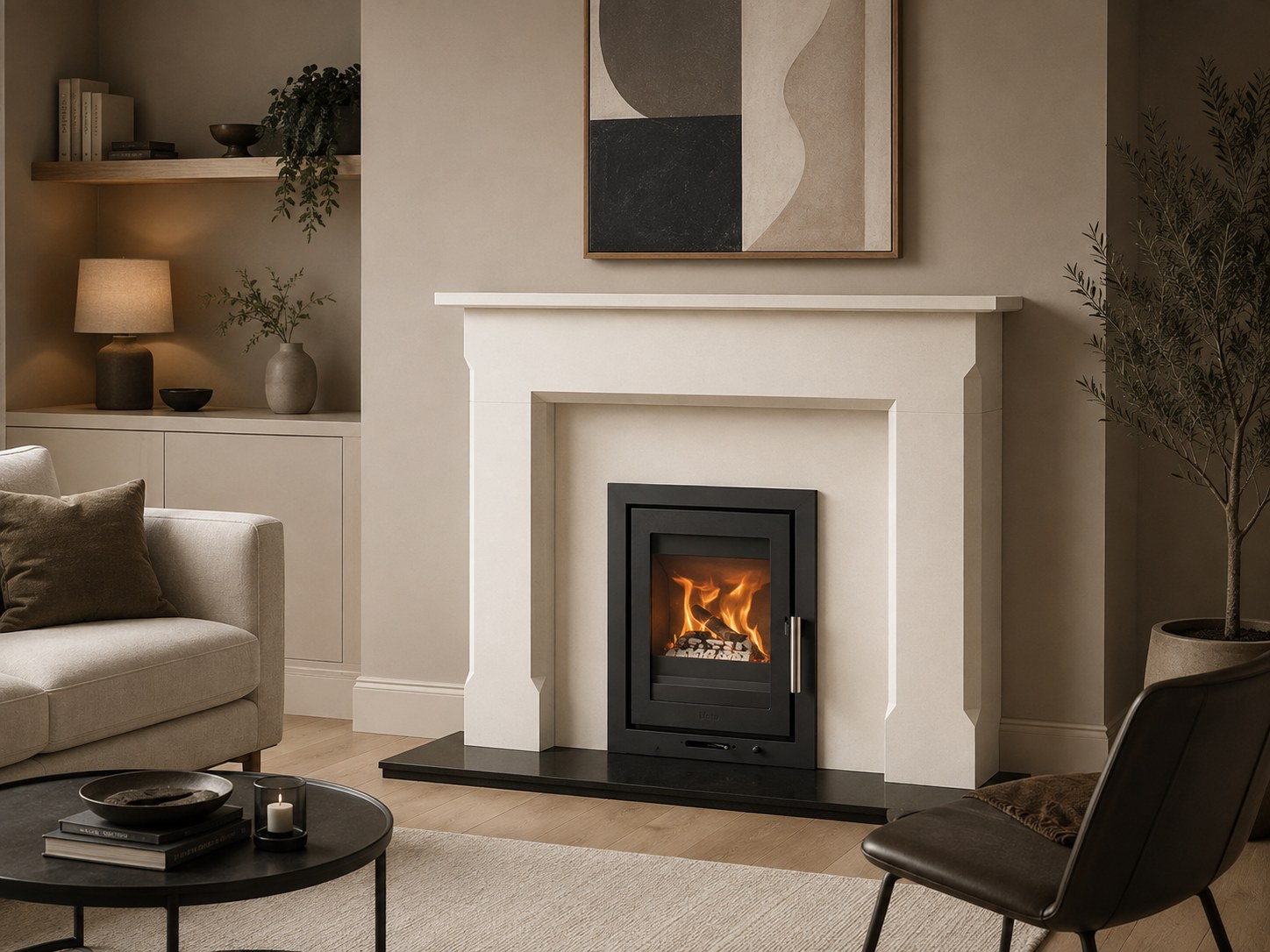

Heta Inspire 40 Insert
Inspire 40 Insert is a compact built-in wood-burning appliance for a flush fireplace treatment. It keeps the fire behind a simple rectangular frame and can be considered where the available chimney breast does not lend itself to a large open chamber. The opening, construction and flue still need to be surveyed before the insert is specified.
- FormatFreestanding
- RatingA+
- Built-in Inspire firebox where a freestanding stove would crowd the room
- Flat or hidden wall frame finishes
- Same rugged steel and cast iron build as the Inspire stoves
- Check current HETAS registration
- Confirm survey availability
- Written quote
Key features
- 4-6.3kW working range
- 20-80m2 heating guidance
- A+ energy rating
- Flat or hidden wall frame
Specification
Inspire 40 Insert
- Height
- 554mm
- Width
- 406mm
- Depth
- 344mm
- Combustion chamber width
- 330mm
- Output range
- 4-6.3kW
- Room size
- 20 to 80 square metres
- Energy rating
- A+
- Frame options
- Flat or hidden wall frame
Proposed project scope
TFS currently advertises HETAS-registered installation and a home-survey service. Confirm both before booking. A proposed scope may include:
- The exact stove and recorded output checked against the room brief
- The proposed liner or factory-made chimney system identified
- Any hearth, chamber and fireplace work set out in writing
- Compatible connecting, closure and terminal components specified
- Testing, commissioning and operating guidance included where applicable
- The compliance and notification route confirmed before work is booked
Technical documents
Parts price
What this parts package includes
Included in this parts package
- Heta Inspire 40 Cassette
- Runswick natural limestone fireplace
- Antique Leather matt black granite hearth
Package price
£3,840
Parts onlyparts only, before flue and fitting
Get a complete installation quoteInstallation scope quoted after assessmentThe £3,840 figure covers the three listed parts. Liner requirements, flue connection and installation work are established and priced after the chimney has been surveyed.
Common questions
Questions to check about Heta Inspire 40 Insert
What is the difference between the flat and hidden frame?
The flat frame sits proud of the wall as a slim border; the hidden frame is plastered in so the glass appears to sit straight in the wall. Both finish the same firebox, and the choice is made when the order is placed.
Can the Inspire 40 Insert go into an existing chimney breast?
Often, yes. It needs a suitable builders opening and a lined flue, which is exactly what the home survey establishes before we quote.
