5kWnominal output
- DEFRA ExemptSmoke control areas
- EcodesignCleaner-burn standard
- AirwashKeeps the glass clear
- CleanburnEfficient secondary burn
Contura · Wood Burning Stoves

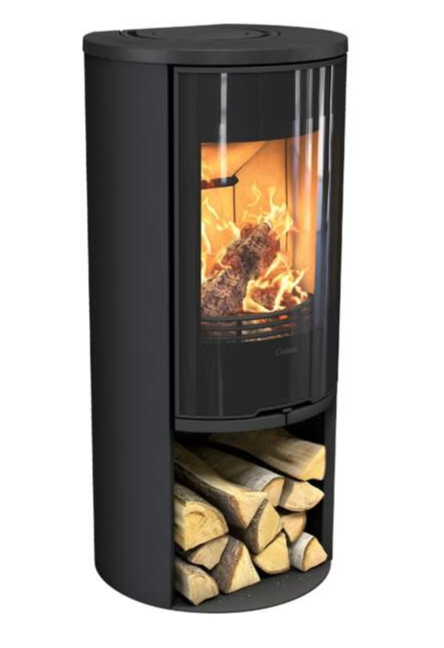

Contura 510 Style Wood Burning Stove
The Contura 510 Style is a beautifully curved Scandinavian woodburning stove that combines elegant contemporary design with excellent heating performance. With a heat output range of 3–7kW, it is suitable for a wide variety of room sizes and can burn seasoned wood logs and compressed timber briquettes.
The stove is DEFRA approved, making it suitable for use in smoke control areas, while its high efficiency helps provide an economical and cleaner-burning source of heat. The Contura 510 Style is highly controllable and features a large viewing window and powerful airwash system, helping to keep the glass clear and giving you an excellent view of the flames.
Its clever construction also makes the Contura 510 Style particularly suitable for modern homes. Depending on the installation requirements and applicable clearances, it can be positioned as close as 100mm from a plasterboard or combustible wall, making it an excellent option for properties with stud walls or other combustible features behind the appliance.
With an impressive A energy rating, the Contura 510 Style measures approximately 1066mm high × 495mm wide × 440mm deep. Its distinctive curved design, efficient performance and flexible installation options make it a stylish and practical choice for homeowners looking to introduce a high-quality Scandinavian woodburning stove into their home.
- Output5kW
- FuelWood only
- FormatFreestanding
- RatingA
- 5kW nominal output with a 3-7kW output range
- Curved body designed to work particularly well in a corner
- May be positioned 100mm from a combustible rear wall where the approved installation arrangement allows
Price on request - visit the Lichfield showroom
- Check current HETAS registration
- Confirm survey availability
- Written quote
Key features
- Large curved glass window with a cast iron door
- Automatic Start Function and Refuelling Boost Function
- Cool touch integrated handle
- Silent Sliding Ashtray and practical log compartment
- Choice of painted aluminium, glass or soapstone top
Specification
510 Style
- Nominal output
- 5kW
- Output range
- 3-7kW
- Efficiency
- 80%
- Energy rating
- A
- Height
- 1066mm
- Width
- 495mm
- Depth
- 440mm
- Weight
- 105kg
- Maximum log length
- 33cm
- Heating area
- Up to 120m2
- Flue outlet
- 150mm top or rear
- Direct air connection
- 67mm
- Fuel
- Seasoned wood logs and compressed timber briquettes
- Smoke control
- DEFRA exempt when installed and operated to the official register conditions
Proposed project scope
TFS currently advertises HETAS-registered installation and a home-survey service. Confirm both before booking. A proposed scope may include:
- The exact stove and recorded output checked against the room brief
- The proposed liner or factory-made chimney system identified
- Any hearth, chamber and fireplace work set out in writing
- Compatible connecting, closure and terminal components specified
- Testing, commissioning and operating guidance included where applicable
- The compliance and notification route confirmed before work is booked
Is it right for you?
Deciding whether Contura 510 Style Wood Burning Stove fits the brief
The 510 Style is designed for a corner or a position where its curved body can soften the line of the room.
Its 5kW nominal output and compact footprint make it a practical model to consider for many living rooms, subject to the heat loss calculation and survey.
Before quotation
What to settle before specifying Contura 510 Style Wood Burning Stove
The installation survey confirms the required rear and side clearances, hearth, ventilation and flue route. The 100mm figure applies only where the manufacturer's approved combustible wall arrangement and all other clearances are satisfied.
An honest steer
How it compares with similar models
Choose the 510 Style for a front view of the fire and a cast iron door. Choose the 556 Style if side glass is important for views from more of the room.
Common questions
Questions to check about Contura 510 Style Wood Burning Stove
Can the Contura 510 Style be installed near a plasterboard wall?
It may be installed 100mm from a combustible rear wall in the approved arrangement, but the side clearance and flue clearances also apply. The home survey confirms the complete layout before ordering.
Is the Contura 510 Style suitable for a smoke control area?
Yes. It appears on the official UK exempt appliances register and must be installed and operated in accordance with the registered conditions.
What size room suits the Contura 510 Style?
The manufacturer gives a 5kW nominal output, a 3-7kW output range and a maximum heating area of 120m2. We still calculate the room requirement before recommending it.
