5kWnominal output
- EcodesignCleaner-burn standard
- A+ RatedEnergy efficiency
Clock · Wood Burning Stoves

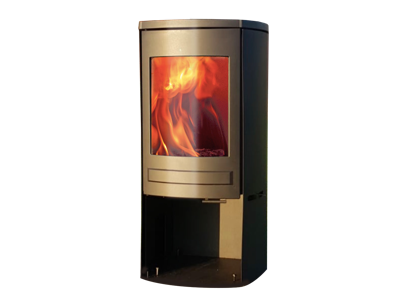

Clock Brocksford CS5 Wood Burning Stove
A tall freestanding Clock wood burner with an integrated log-store stance, made for contemporary hearths and rooms that suit a slimmer vertical stove.
- Output5kW
- FuelWood only
- FormatTall freestanding
- Flue5in / 130mm
- RatingA+
- Tall 970mm format with a contemporary stance
- 5kW nominal wood-burning model
- Closer published side/back combustible distance than many box stoves
Price on request - visit the Lichfield showroom
- Check current HETAS registration
- Confirm survey availability
- Written quote
Key features
- Wood-burning only model
- 3kW to 7kW output range
- A+ energy rating with 81.5% efficiency
- 480mm wide by 970mm high
- 120kg body weight
Specification
Brocksford CS5
- Fuel
- Wood-burning only
- Nominal output
- 5kW
- Output range
- 3kW - 7kW (Nominal 5kW)
- Energy rating
- A+ (81.5% Efficiency)
- Dimensions
- 480mm (W) x 970mm (H) x 430mm (D)
- Weight
- 120kg
- Flue size
- 5in / 130mm
- Glass size
- 323mm x 385mm
- Rope size
- 12mm Diameter Soft
- Ecodesign
- ECO Design 2022 ready as standard
- Smoke control
- Approved for use in smoke control areas
- 12mm hearth
- Minimum hearth thickness 12mm
- Direct air
- Direct air kit optional
- Warranty
- 7 years, subject to Clock warranty terms
- Distance to combustibles
- Above: 750mm; Side/Back: 250mm
- Distance to non-combustibles
- Above: 250mm; Side: 100mm; Back: 50mm
Proposed project scope
TFS currently advertises HETAS-registered installation and a home-survey service. Confirm both before booking. A proposed scope may include:
- The exact stove and recorded output checked against the room brief
- The proposed liner or factory-made chimney system identified
- Any hearth, chamber and fireplace work set out in writing
- Compatible connecting, closure and terminal components specified
- Testing, commissioning and operating guidance included where applicable
- The compliance and notification route confirmed before work is booked
Is it right for you?
Deciding whether Clock Brocksford CS5 Wood Burning Stove fits the brief
The Brocksford CS5 is the Clock stove for a more contemporary room: taller, cleaner and less like a traditional box in a fireplace opening.
It suits freestanding hearths, simple chambers and rooms where the stove should have a slimmer vertical presence.
Before quotation
What to settle before specifying Clock Brocksford CS5 Wood Burning Stove
Clock publish a 970mm height and 120kg weight, so the visual height, hearth position and access route all need confirming at survey.
The published side/back combustible distance is useful, but we still check the finished wall build-up and any surrounding joinery before ordering.
An honest steer
How it compares with similar models
Choose Brocksford where the style wants a taller contemporary stove. Choose Sudbury or Blithfield where the stove is sitting inside a more traditional fireplace opening.
Finishes
5 colour finishes
Colour options published by Clock. Tap a finish to preview it, then compare them in person at the showroom.
Common questions
Questions to check about Clock Brocksford CS5 Wood Burning Stove
Is the Brocksford CS5 a contemporary Clock stove?
Yes. Clock position Brocksford as a contemporary-designed wood-burning stove with cleaner modern lines.
Is the Brocksford CS5 wood-only?
Yes. Clock list the Brocksford CS5 as a wood-burning only stove.
Can Brocksford be specified in colour finishes?
Clock list multiple colour options for Brocksford, and the page includes official Clock colour swatches.
