10.5kWnominal output
- EcodesignCleaner-burn standard
Clock · Wood Burning Stoves

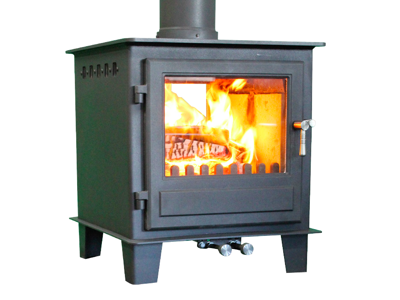

Clock Blithfield DS Double-Sided Stove
Another great triumph of British engineering, the Clock Blithfield DS is a truly impressive double-sided woodburning stove. Double-sided stoves are becoming increasingly difficult to find, largely because achieving the required levels of efficiency and clean burning in a stove designed to provide heat and a view of the fire from both sides presents a significant engineering challenge.
Clock have overcome this challenge with the Blithfield DS, creating a stove that delivers the performance expected from a modern appliance while retaining the distinctive styling and character found throughout the Blithfield range.
With its impressive double-sided design, the DS is perfect for dividing or connecting two living spaces, allowing the warmth, atmosphere and view of the fire to be enjoyed from both sides. Add to this the beautifully detailed door frames, substantial hinges and distinctive handles, and you have a stove that is as much a piece of British engineering and design as it is a source of heat.
If you want something genuinely different and a beautifully engineered stove that efficiently heats your home while creating a stunning focal point from two sides, the Clock Blithfield DS is an exceptional choice.
- Output10.5kW
- FuelMulti-fuel
- FormatDouble-sided
- Flue6in / 150mm
- RatingA+
- Double-sided Blithfield for two-room fireplace openings
- 10.5kW nominal output for larger connected spaces
- Multi-fuel body with 150mm flue size
Price on request - visit the Lichfield showroom
- Check current HETAS registration
- Confirm survey availability
- Written quote
Key features
- Wood-burning and multi-fuel model
- 8.5kW to 14kW output range
- A+ energy rating with 75% efficiency
- 535mm wide by 600mm deep body
- Colour finish options shown with Clock swatches
Specification
Blithfield DS
- Fuel
- Wood-burning and multi-fuel
- Nominal output
- 10.5kW
- Output range
- 8.5kW - 14kW (Nominal 10.5kW)
- Energy rating
- A+ (75% Efficiency)
- Dimensions
- 535mm (W) x 600mm (H) x 600mm (D)
- Weight
- 175kg
- Flue size
- 6in / 150mm
- Glass size
- 352mm x 270mm
- Rope size
- 12mm Diameter Soft
- Ecodesign
- ECO Design 2022 ready as standard
- Smoke control
- Approved for use in smoke control areas
- 12mm hearth
- Minimum hearth thickness 12mm
- Direct air
- Direct air kit optional
- Warranty
- 7 years, subject to Clock warranty terms
- Distance to combustibles
- Above: 550mm; Sides: 850mm
- Distance to non-combustibles
- Above: 300mm; Sides: 200mm
Proposed project scope
TFS currently advertises HETAS-registered installation and a home-survey service. Confirm both before booking. A proposed scope may include:
- The exact stove and recorded output checked against the room brief
- The proposed liner or factory-made chimney system identified
- Any hearth, chamber and fireplace work set out in writing
- Compatible connecting, closure and terminal components specified
- Testing, commissioning and operating guidance included where applicable
- The compliance and notification route confirmed before work is booked

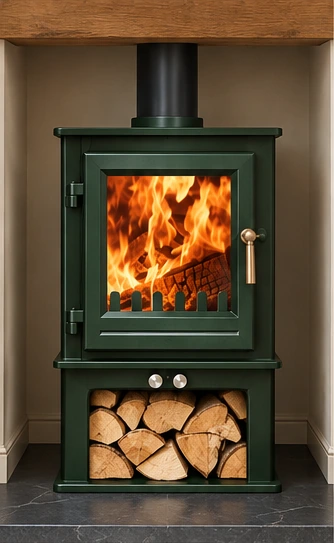

Clock colour studio
Colour to suit you and your home

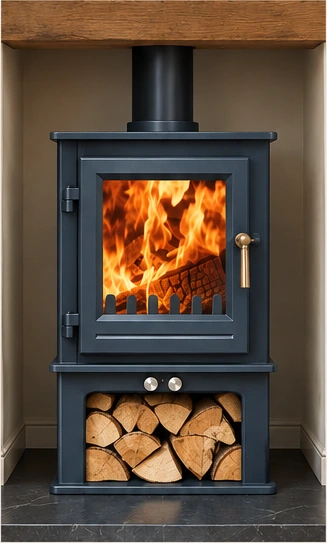

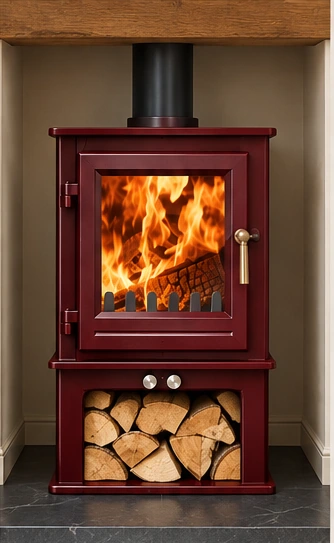

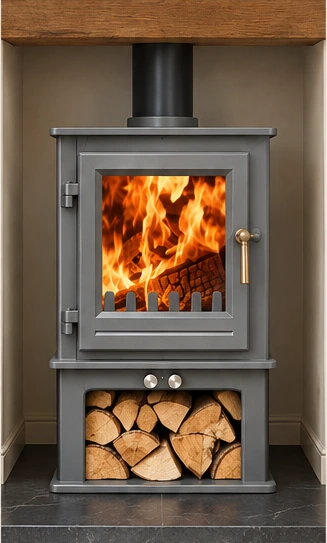

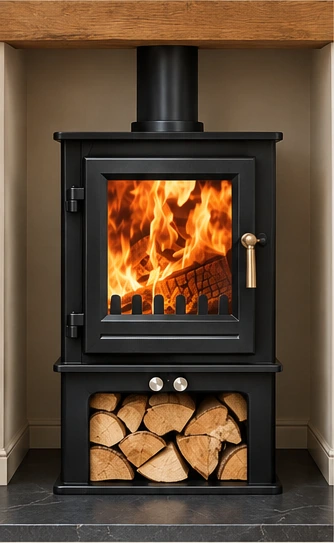

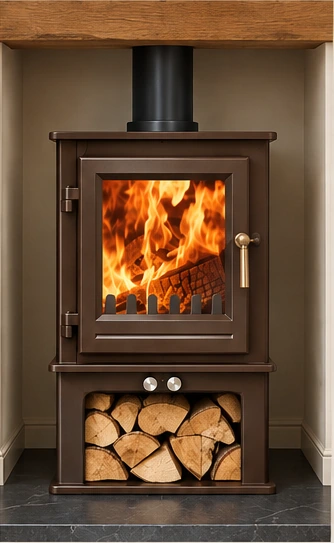

Compare all six Clock finishes in the same room setting. Choose a colour to study the detail, then use the complete guide or compare physical samples at the Lichfield showroom.
01 / 06
Is it right for you?
Deciding whether Clock Blithfield DS Double-Sided Stove fits the brief

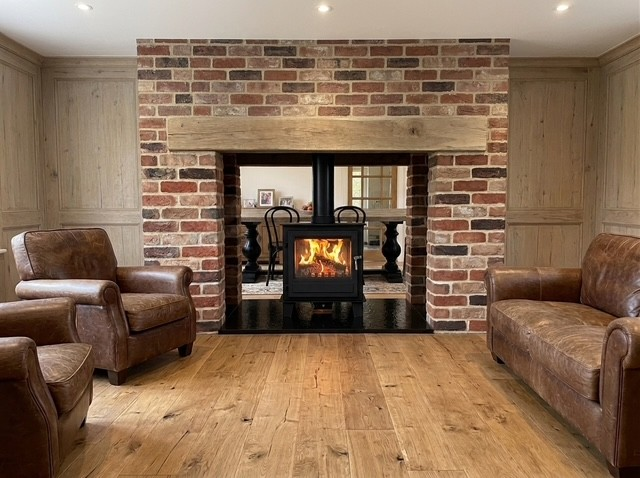

The Blithfield DS is for through-wall openings where the fire needs to serve two spaces, not for a standard single-room fireplace.
It is a high-output, high-mass stove, so it suits larger connected rooms where the chimney, hearth and clearances can support it properly.
Before quotation
What to settle before specifying Clock Blithfield DS Double-Sided Stove
Double-sided stoves need careful planning around both sides of the opening: hearth projection, combustible materials, air movement and how the flue connects above the appliance.
Clock publish a 150mm flue size and a 175kg weight for the DS, so structural support and access are part of the survey.
An honest steer
How it compares with similar models
The DS is not simply a bigger Blithfield 5. It is a specialist double-sided stove for a different type of fireplace opening and room layout.
Finishes
5 colour finishes
Colour options published by Clock. Tap a finish to preview it, then compare them in person at the showroom.
Common questions
Questions to check about Clock Blithfield DS Double-Sided Stove
What does DS mean on the Clock Blithfield DS?
DS refers to the double-sided format. It is designed to give a fire view from both sides of a through-wall fireplace opening.
Is the Blithfield DS suitable for a normal fireplace?
Usually no. It is specified for double-sided openings, so the survey needs to confirm both rooms, both hearth edges and the flue route.
Is the Blithfield DS approved for smoke control areas?
Clock list the Blithfield DS as approved for use in smoke control areas in the June 2026 brochure. We confirm the exact appliance and installation requirements before quoting.
