Cannock family home · Cannock
A Hunter Isca 5 and split-slate feature fireplace
A Cannock installation pairing a Hunter Isca 5 woodburning stove with a non-combustible feature chimney breast, light split-slate chamber, dark slate hearth and pine-finish beam.
Cannock
The project
It is always a pleasure to work with a younger couple just starting out on their life journey together, helping them transform a standard 1990s estate home into a bright, contemporary space tailored to modern family living.
To create a safe and visually striking focal point, our Hetas installation team constructed a bespoke non-combustible feature chimney breast complete with an enlarged stove chamber opening. The back of the chamber was lined with light slate split-face tiles, designed to subtly reflect the ambient lighting and perfectly highlight the sleek lines of the new Hunter Isca woodburning stove.

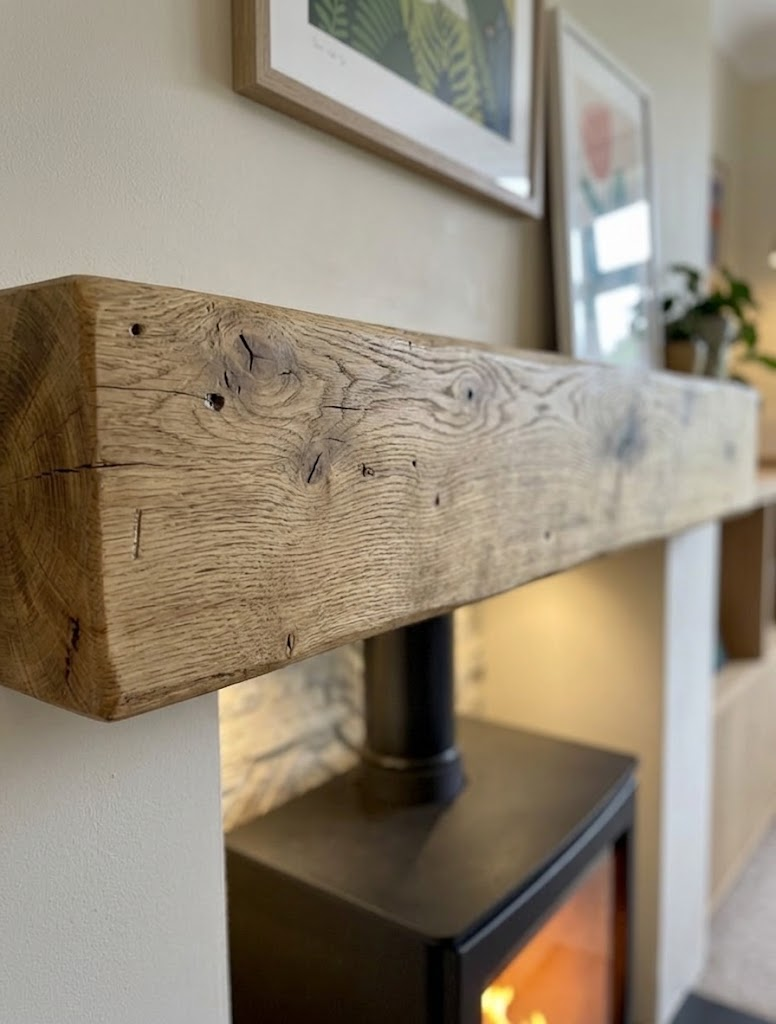

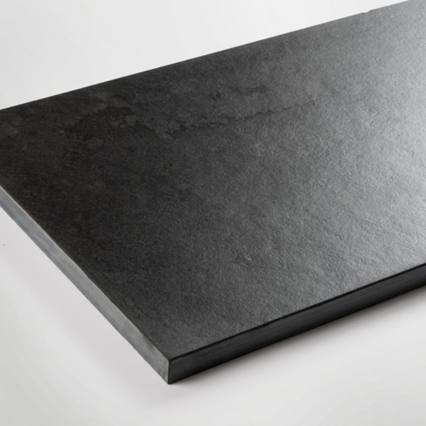

To ground the feature, we installed a dark matte slate hearth with a clean 20mm flat profile, finished with a natural oak beam in a pine colour finish above the stove chamber opening to deliver a beautifully balanced aesthetic.
Our client then added built-in alcove furniture and storage, playful artwork, and warm family friendly textures. The completed fireplace brings both modern elegance and functional warmth to the heart of this lovely Cannock family home.
Before and after
The transformation

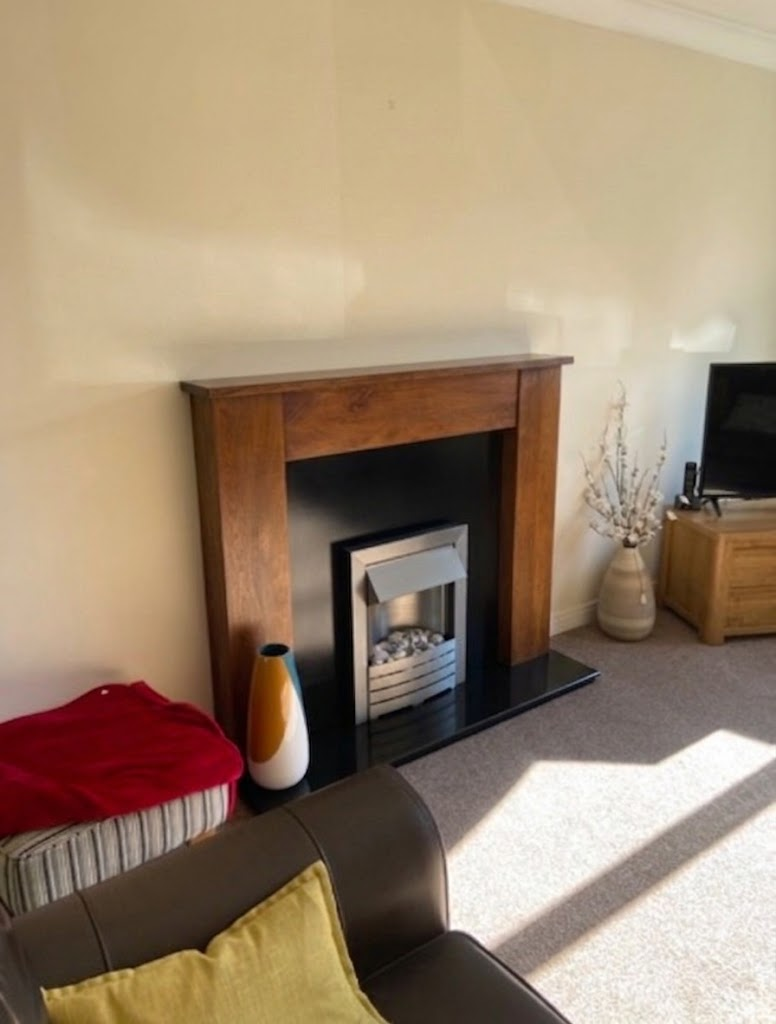

The flat original fireplace wall recorded at survey stage before the Cannock installationHunter Isca 5 woodburning stove within a light split-slate chamber, dark slate hearth and pine-finish beam in a Cannock family home
The work
What we did
Twin Wall Flue Systems
A twin-wall insulated flue system consists of two concentric stainless-steel pipes separated by a thick layer of high-density insulation. This thermal barrier retains heat within the inner pipe, keeping flue gases hot to ensure a strong, consistent natural draw while maintaining a safe outer skin temperature that protects nearby walls, floors, and roof structures.
No Chimney Required: The ultimate solution for properties without a traditional brick chimney, allowing a log burner or multi-fuel stove to be installed in virtually any ground- or upper-floor room.
Flexible Routing: Can be routed straight up through internal ceilings and out through the roof or directed externally through an outer wall and up the building's exterior (as per this Cannock case study).
Bespoke Surveying: Designed using precise architectural and height calculations taken during a technical home survey to ensure ideal draft performance and safety clearances.
Aesthetic Options: Offered in a sleek, hard-wearing powder-coated black finish to blend seamlessly with contemporary interiors and modern exterior brickwork, or a classic polished stainless-steel finish.
Questions about this kind of job
Asked and answered
Which stove was used for this Cannock installation?

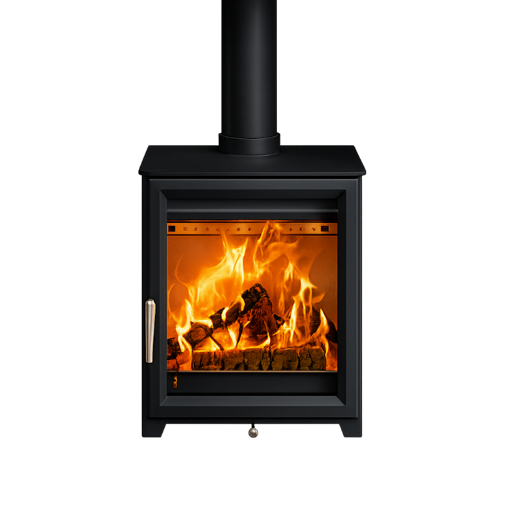

The project uses a Hunter Isca 5 5kW woodburning stove with an external air kit.
How was the feature fireplace constructed?
The recorded installation uses a non-combustible metal stud and Glasroc feature chimney breast, a paintable Firecase chamber and light slate split-face tiles at the back of the opening.

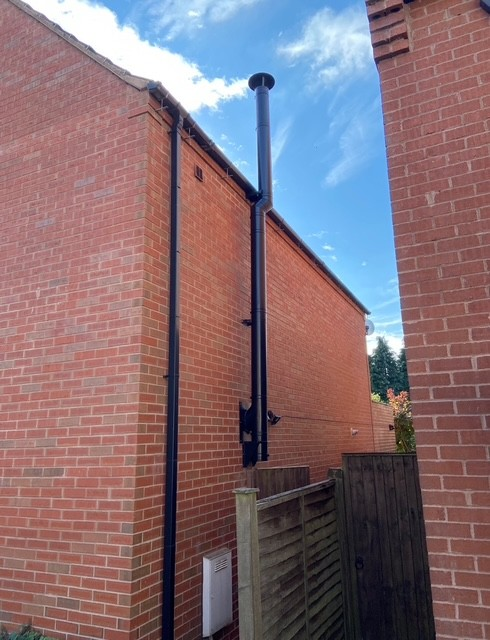

Why was an external twin-wall flue used?
The property did not have a traditional brick chimney, so an insulated stainless-steel flue was routed through the external wall and up the outside of the building.
Which hearth, beam and lighting finishes were included?
The specification records a dark slate hearth and matching chamber base, a timber beam with a pine colour finish, and chamber illumination.
Registration check
Verify Our HETAS Details Before Booking
When booking your stove installation with The Fireplace & Stove Co (TFS) or any installer, verifying registration details through the official HETAS directory ensures your project is fully compliant:
- Verify Business & Installer Status: Search the official HETAS online register to confirm that both the business and the individual attending engineer hold active, current registrations.
- Check Work Categories: Ensure the installer is specifically registered for your required work type (e.g., dry solid fuel appliance installation, internal twin-wall flue systems, or flexible chimney relining).
- Confirm Building Control Route: Work completed by a HETAS-registered competent person allows for self-certification under Building Regulations, saving you the time and expense of applying directly to your local council's Building Control department. If any part of the project falls outside their registered scope, a separate Building Control application must be arranged before work begins.
